    DC24V Brushless Motor Drive Roller High Torque Motor For Conveyor Systems

    Ask Lasest Price
    Brand Name : Winroller
    Model Number : DGBL50A DC24V Brushless Motor Drive Roller
    Certification : CE, ROHS2.0, EMC, ISO9001
    Price : Contact Us
    Payment Terms : TT, L/C
    Supply Ability : 1000000/year
    Delivery Time : 7-15 word days
    • Product Details
    • Company Profile

    DC24V Brushless Motor Drive Roller High Torque Motor For Conveyor Systems

    DC24V Brushless Motor Drive Roller High Torque Motor For Conveyor Systems

    Product Description

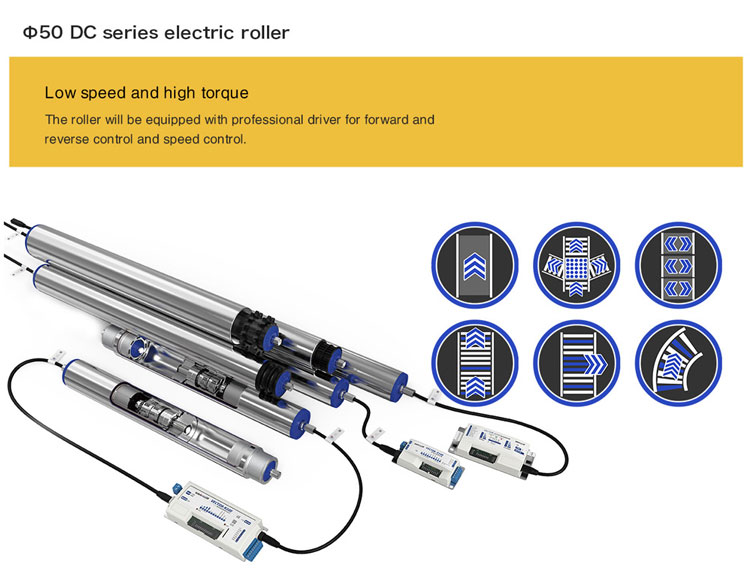

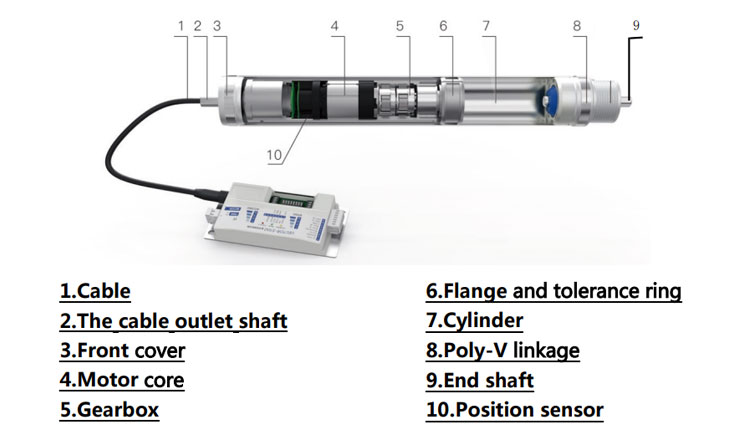

    The DGBL50A DC Brushless Motor Drive Roller is engineered to provide smooth, reliable motion for automated handling and transmission systems. With its built-in DC brushless gear motor and flexible speed regulation, this drive roller is ideal for unit handling conveyors, automated transmission lines, and shuttle systems that require precise control. Its adaptable design makes it suitable for various conveyor types including linear conveyors, small belt conveyors, and zero pressure accumulation (ZPA) conveyors. The product is built to perform under ambient temperatures ranging from -15°C to +45°C and is protected under IP54 standards, making it robust against dust and moisture.


    Product Features

    • High torque:The combination of new high efficiency motor and high-precision gear makes the product performance better; under heavy load,the torque is 8%~10% larger than square wave.
    • Adjustable Speed and torque: Easily adjust the speed from 0.87 m/min to 120 m/min to match medium and light load scenarios. The motor offers powerful output torque with options in S1 and S2 working systems (40W to 100W) to meet diverse load requirements.
    • Energy Efficiency: The integrated brushless gear motor ensures low energy consumption while delivering high performance.
    • Safe and Flexible Voltage Options: Available in DC24V and DC48V, the drive roller is designed with safety in mind, providing stable and worry-free operation.
    • Wide Speed Regulation Range: Enjoy precise control with a regulation range from 8.7% to 100% tailored to your operational needs.
    • Intelligent Control: The integrated control card supports multiple communication protocols including IO, RS485, and Ethernet, enabling remote and intelligent control of your conveyor systems.
    • Customizable Surface Treatment: Standard models are non-glued, but optional treatments include glue wrapping with various surface patterns (plane, herringbone, diamond), and customization for enhanced wear and corrosion resistance.

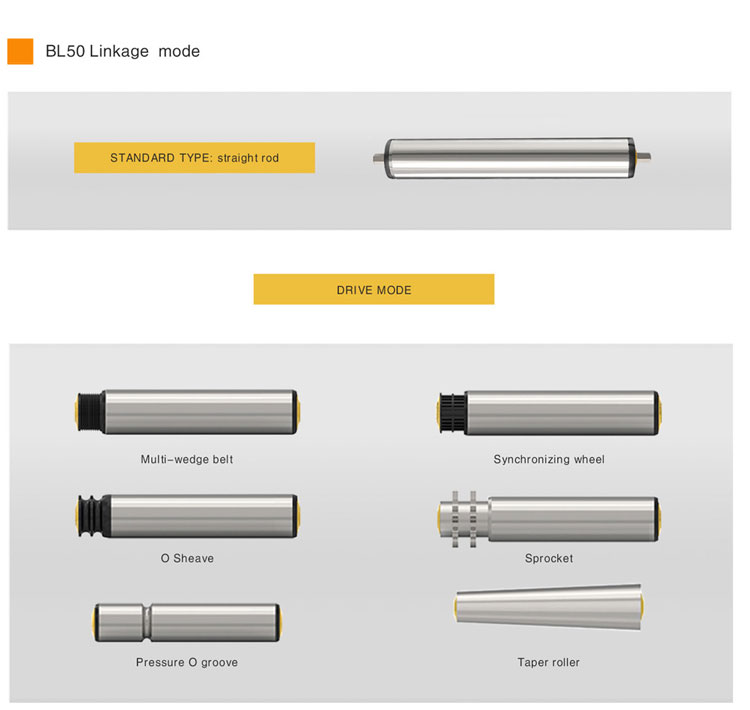

    • Versatile Mechanical Design: The drive roller can be configured with various driving methods such as Poly-V wheels, V belt wheels, synchronous wheels, sprockets, and more to meet specific industry requirements.

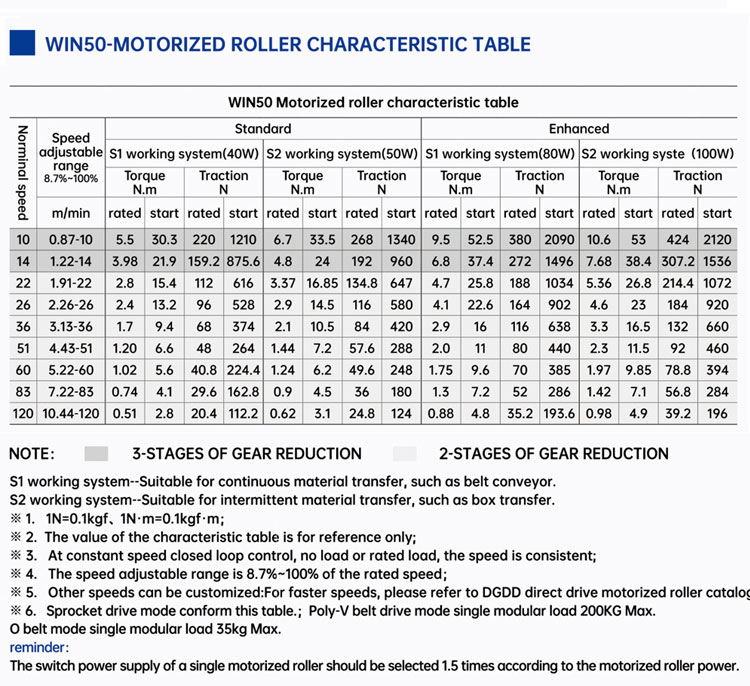

    Product Parameters

    ParameterSpecification
    BrandWinroller
    ModelDGBL50A DC Brushless Motor Drive Roller
    TypeDC Brushless Gear Deceleration Motor Drum
    Dimensions50 mm in diameter
    Tube Length300 – 1500 mm
    Voltage OptionsDC24V / DC48V
    Power Options40W / 50W / 80W / 100W
    Rated Speed0.87 – 120 m/min
    Maximum LoadUp to 400 kg
    Anti-StaticYes
    Pipe MaterialGalvanized Steel or Stainless Steel 304
    Surface TreatmentZinc Plating; optional glue wrapping available
    Ambient Temperature-15°C to +45°C
    Protection ClassIP54
    Running NoiseBelow 55 dB
    Driving MethodsPoly-V wheel, V belt wheel, synchronous wheel, O wheel, sprocket, pressure O groove, knurling, roller straight

    Product Applications

    The DGBL50A DC24V brushless high torque motor drive roller is designed for a variety of industrial applications, including:

    • Automated Conveyor Systems: Ideal for material handling in manufacturing, packaging, and logistics.
    • Unit Handling Conveyor Systems: Efficiently transport cardboard boxes, bins, and other materials.
    • Automated Transmission Systems: Suitable for shuttle systems connecting different sections of a production line.
    • Zero Pressure Accumulation (ZPA) Conveyors: Enables smooth operations even under low-pressure accumulation scenarios.
    • Food and Beverage Industries: With options for food-grade silica gel and stainless steel components, it meets strict sanitary standards.
    • Custom Industrial Solutions: The roller’s design and adaptability allow for custom configurations to meet specific industry needs, such as enhanced wear resistance and corrosion protection.

    Frequently Asked Questions (FAQ)

    1. What certifications does the DGBL50A comply with?

    The DGBL50A drive roller meets several international standards including CE, ROHS 2.0, and EMC certifications, ensuring high safety and performance standards.

    2. What are the voltage options available for this product?

    The drive roller is available in both DC24V and DC48V configurations, providing flexibility and safe operation under various conditions.

    3. Can the surface of the drive roller be customized?

    Yes, the standard model is non-glued, but we offer optional glue wrapping treatments with various surface patterns such as plane, herringbone, and diamond. Additionally, components like the shaft and barrel can be customized with wear-resistant or corrosive-resistant materials.

    4. What is the operating temperature range for this drive roller?

    The DGBL50A is designed to operate reliably in ambient temperatures ranging from -15°C to +45°C, making it suitable for diverse industrial environments.

    5. How does the speed regulation work?

    The drive roller offers a wide range of speed adjustments from 0.87 m/min to 120 m/min, with a flexible regulation range between 8.7% and 100% to precisely meet your operational demands.

    6. What communication protocols does the control card support?

    The integrated intelligent control card supports various communication methods including IO, RS485, and Ethernet for effective remote and intelligent control.
