| Brand Name : | Winroller |
| Model Number : | Winroller DDGD67 Direct Drive Sorting Roller |
| Certification : | CE, ROHS2.0, EMC, ISO9001 |
| Price : | Contact Us |
| Payment Terms : | TT, L/C |
| Supply Ability : | 1000000/year |
| Delivery Time : | 7-15 word days |

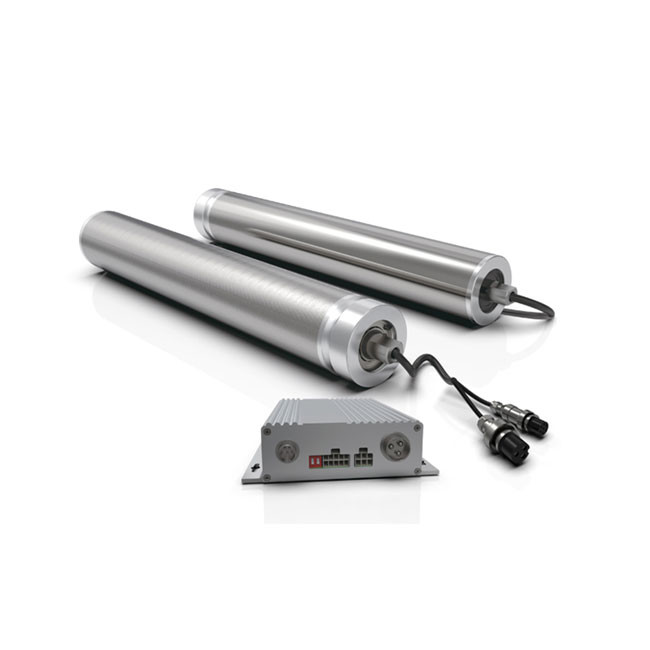

The DGDD67 direct drive drum motor provides an efficient, reliable and energy saving solution for crossbelt sortation systems with its outstanding performance and innovative technology. Whether in e-commerce logistics, courier sorting or industrial automation the DGDD67 is the ideal choice for improving sorting efficiency and reducing operating costs.

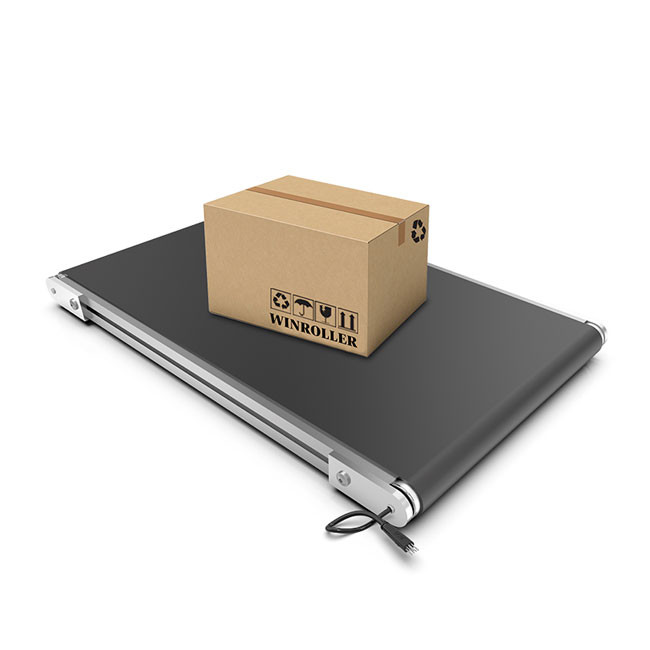

| Application | Ф67 Direct Drive Sorting Roller For Cross Belt Weighing Sorting System | Diameter | 67mm |
| Voltage | 48V, 72V, 220V | Power | 300W, 400W, 800W |
| Motor Type | Permanent Magnet Servo Motor | Load | 20kg, 35kg, 60kg |
| Length | 428L~1200L | Linear Velocity | 1-3.5M/S |
| Rated Speed | 350-1000rpm |
Rotary transformer servo control, position sensor is inductive encoder, there is no electronic component in the electric roller, with strong environmental adaptability, no fear of electrostatic threat, and zero maintenance of equipment. 12-bit commercial A/D converter, 5-pole motor design, resolution up to 20480, and recognition down to 0.0176 degrees. High-precision position recognition, high-accuracy real-time control, and response speed as low as 0.05s. With excellent performance, our servo direct-drive electric roller is often used in industries with high hygiene requirements:
1. In the food packaging industry, it can provide clean and quiet
operation without using oil and grease.
2. Industries requiring quick response and simple control, such as
express industry. With freely selected conveying speed and
instantaneous driving power of up to 1500w, it can perform the
sorting role in the 1800 times/h cycle operation of the single
packing table and the overall delivery of 20000 pieces/hour.
3. For occasions with high noise requirements, it provides a better
solution for driving the conveyor with its unique gearless design.
| Project | Specifications | Explain |
| Motor Type | DC brushless motor(BL DC) | |
| Motor Type | Outer rotor motor | |
| Voltage | DC48V+-10% | |
| Number of poles | 10 | 5 pairs of poles |
| Rated power range | 400W | |
| Speed range | 300-762r/min | |
| Rated torque | 6N.m | |
| Instantaneous maximum torque | 18N.m | Not more than 4 seconds |
| Working system | Indirect working system 25% | Determined according to ambient temperature |
| Drive type | DC brushless servo driver | Explain |
| Input rated voltage | DC48V | |
| Driver rating | 400W | Intermittent working system 25% |
| Drive size | 155mm*147.1mm*42mm | |
| Communication modeA | rs485 | 38400bps,N,8,1 |
| Power interface | Plug42000-6P (5557) | nylon ( PA66 ) ,UL94V-2/0 |
| Terminal42000-21RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.12~0.5mm2, 26~20AWG Outer diameter of wire: 1.1~1.9mm | |
| communication interface | Plug42000-10P(5557) | Nylon (PA66), UL94V-2/0 |
| Terminal42000-01RT(5556) | Phosphor bronze (C5191) Wire gauge: 0.032~0.08mm2, 32~28AWG Outer diameter of wire: 0.5~1.0mm | |
| Motor interface | Special interface | |
| Motor Hall interface | Special interface | |
| Operating ambient temperature | -20-+85℃ | |
| Operating ambient humidity | Less than 85% | No water drops and rain |
|
|
