Diameter 50mm DC Box-Type Conveyor Motor Drive Taper Roller For Cone-Roller Type Zero-Discharge Curve Conveyor System

Features Overview of Diameter 50mm DC Box-Type Conveyor Motor Drive Taper Roller

Motor Drive Taper Roller for Cone-Roller Type Zero-Discharge Curve Conveyor System: The cone-roller design with PVC soft adhesive guides items smoothly through curves with minimal friction, while the zero-discharge curve reduces material loss and ensures efficient handling in curved sections.

Function of Diameter 50mm DC Box-Type Conveyor Motor Drive Taper Roller

Motor Drive Taper Roller for Cone-Roller Type Zero-Discharge Curve Conveyor System: This high-performance, high-torque roller features a cone-roller design with PVC soft adhesive, ensuring smooth material handling through curves with minimal friction. The zero-discharge curve minimizes material loss and enhances efficiency in curved conveyor sections. Certified with CE, ROHS 2.0, and EMC, it is an energy-efficient, low-noise motorized roller. It is ideal for unit handling conveyor systems, automatic transmission systems, and transporting items such as cardboard boxes, material boxes, pressure plates, and tires. Suitable for linear conveyors, small belt conveyors, and zero-pressure accumulation conveyors, it can also be used in shuttle systems to connect conveyor sections or load shifters. With a diameter of 50 mm, IP54 protection, and a temperature range of -30°C to 60°C, it provides reliable performance across various industrial applications.

Application of Diameter 50mm DC Box-Type Conveyor Motor Drive Taper Roller

1. Unit Handling Conveyor Systems: Efficiently handles discrete items like cardboard boxes and material boxes.
2. Automatic Transmission Systems: Facilitates automated material movement and sorting.
3. Zero-Pressure Accumulation Conveyors: Prevents product damage by eliminating pressure build-up.
4. Linear Conveyors: Ensures reliable material transport in straight-line systems.
5. Small Belt Conveyors: Performs well in compact, high-performance conveyor setups.
6. Shuttle Systems: Connects conveyor sections for seamless material transfer.
7. Load Shifters: Accurately moves and shifts loads in various applications.
8. Curved Conveyor Sections: Minimizes material loss and enhances efficiency in curves.
9. Industrial Transport Systems: Handles diverse items such as pressure plates and tires across industrial environments.

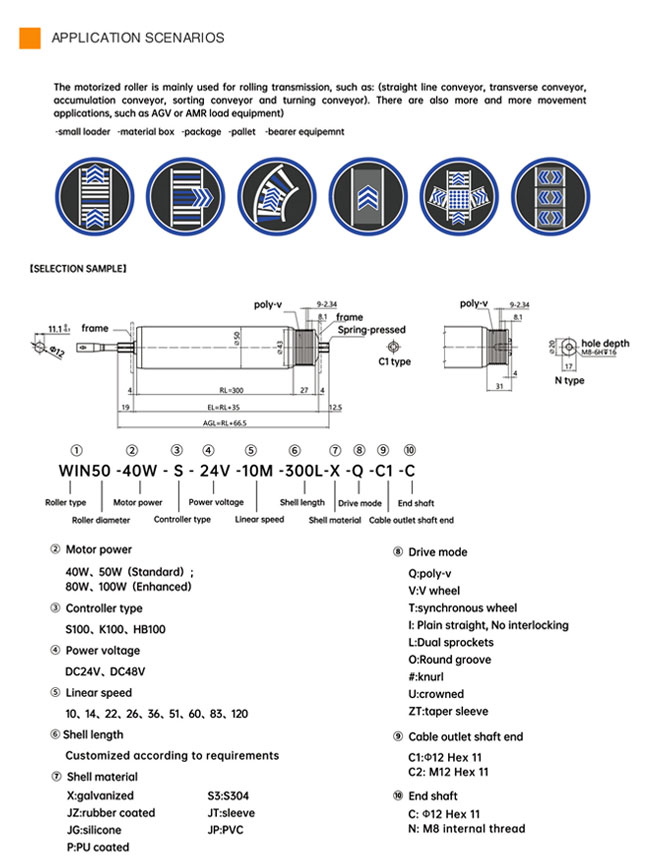

Technical Parameters of Diameter 50mm DC Box-Type Conveyor Motor Drive Taper Roller

Feature Picture of Diameter 50mm DC Box-Type Conveyor Motor Drive Taper Roller

WINROLLER is a global manufacturer of advanced conveyor components, specializing in the development and production of miniature and small motors and conveyor rollers.

The company has won numbers of invention patents, and passed ISO9001 ans SGS quality system certification, EU CE certification, ROHS certification, UL certification and high-tech product certification.

Products are widely used in industrial automation, security checking machine, express logistics and other occasions.

We sincerely invite global cooperation agents, strategic partners, interested parties please contact the overseas Marketing Department.
