JIANG SU Winroller Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Winroller |

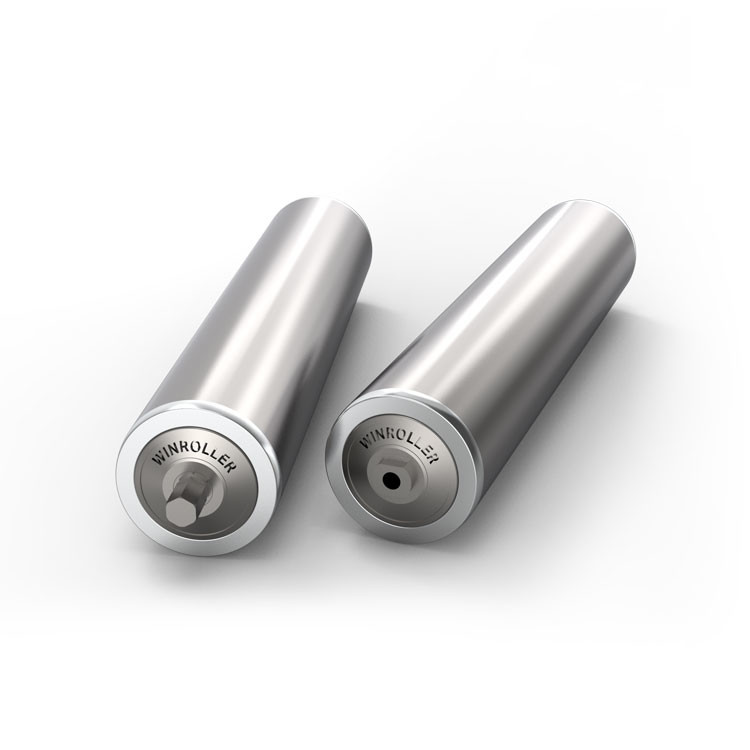

| Model Number : | Winroller Stainless Non-Power Conveyor Idler Roller For Roller Conveyors |
| Certification : | CE,SGS,ISO9001,ROHS,UL |
| Price : | Contact Us |
| Payment Terms : | TT, L/C |
| Supply Ability : | 500000/year |
| Delivery Time : | 7-15 word days |
※ Precision bearings, integrated steel components
※ Rugged and completely anti-static
※ Full diameter series, large loading range
※ Working temperature: normal temperature (-20~+80 ℃)
Please contact us if humidity out of this scope.
Remarks:
Cannot be used for belt conveyor tensioning rollers
It is simplest and widely used product in the gravity roller series. It is commonly used for general non-powered and downward roller conveyors and belt rollers.
| Pipe diameter and wall thickness | Bearing | Axis center | Roller material | |||
| Galvanizing of carbon steel | Stainless | Aluminium alloy | ||||
| φ38*1.2/1.5 | 6001 | φ12 | √ | √ | ||
| φ50*1.5/2.0 | 6001/6002 | φ12/15 | √ | √ | ||
| φ60*2.0/3.0 | 6001/6002 | φ12/15 | √ | √ | √ | |
| φ76*3.0/4.0 | 6202/6204 | φ15/20 | √ | √ | √ | |
| φ80*3.0 | 6204 | φ20 | √ | √ | ||
| φ89*3.0/4.0 | 6204 | φ20 | √ | √ | ||
|
|
