JIANG SU Winroller Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Winroller |

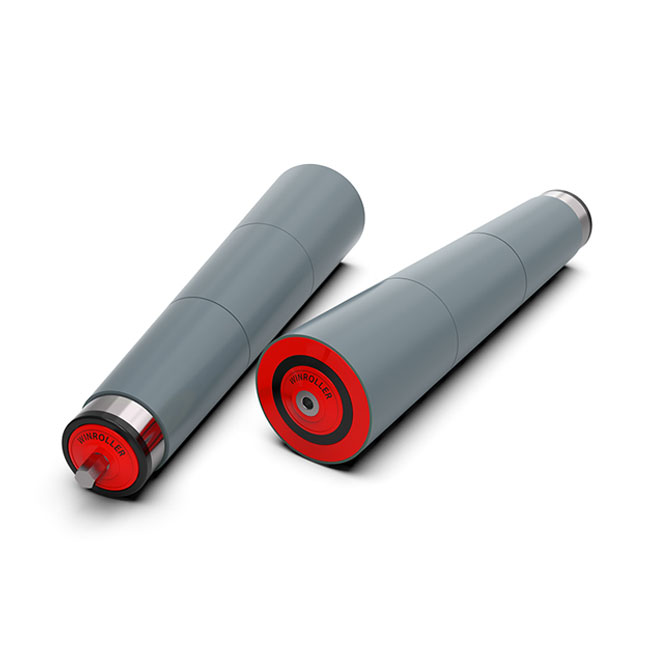

| Model Number : | Winroller Plastic Tapered Conveyor Driven Roller With Anti Rust For Zero-Discharge Curve Conveyor Line |
| Certification : | CE,SGS,ISO9001,ROHS,UL |
| Price : | Contact Us |
| Payment Terms : | TT, L/C |
| Supply Ability : | 1000000/year |
| Delivery Time : | 7-15 word days |
Remark:
Standard 3.6° taper (turning radius is about 800mm),
Can not be anti-static, use at room temperature;
Used for cone-roller type zero-discharge curve conveyor line
| Pipe diameter and wall thickness | Axis center | Sleeve length | D1 | D2 |
| φ50*1.5 | 11hex,φ12/15 | 300 | φ56 | φ74.9 |
| 350 | φ52.9 | φ74.9 | ||
| 400 | φ56 | φ81.1 | ||
| 450 | φ52.9 | φ81.1 | ||
| 500 | φ56 | φ87.4 | ||
| 550 | φ52.9 | φ87.4 | ||
| 600 | φ56 | φ93.7 | ||
| 650 | φ52.9 | φ93.7 | ||
| 700 | φ56 | φ100 | ||
| 750 | φ52.9 | φ100 | ||
| 800 | φ56 | φ106.3 | ||
| 850 | φ52.9 | φ106.3 |
|
|
