    UL CE Approved DC Motor Drive 100W Motorized Roller With Low Speed And High Torque

    Ask Lasest Price
    Brand Name : Winroller
    Model Number : Winroller UL CE Approved DC Motor Drive 100W Motorized Rolle
    Certification : CE, ROHS2.0, EMC, ISO9001
    Price : Contact Us
    Payment Terms : TT, L/C
    Supply Ability : 1000000/year
    Delivery Time : 7-15 word days
    • Product Details
    • Company Profile

    UL CE Approved DC Motor Drive 100W Motorized Roller With Low Speed And High Torque

    UL CE Approved DC Motor Drive 100W Motorized Roller With Low Speed And High Torque

    Features Overview of DC Motor Drive 100W Motorized Roller With Low Speed And High Torque

    The DC Motor Drive 100W motorized roller excels in low-speed, high-torque performance, perfect for heavy loads in industrial transport systems. Its durable design supports various operational needs, while a broad speed range allows for precise control. Ideal for automated applications, it operates quietly and adheres to safety standards, making it a reliable choice for diverse environments.


    Function of DC Motor Drive 100W Motorized Roller With Low Speed And High Torque

    • Low-Speed Operation: Smoothly runs within a speed range of 1.04 m/min to 144 m/min, ideal for precise control of heavy load transport.
    • High Torque Output: Delivers up to 10.6Nm of torque in standard S2 duty, suitable for frequent starts and stops, supporting a maximum load of 400 kg.
    • Versatile Control Options: Supports IO control, RS485, and other interfaces for easy integration with automation systems, enabling remote monitoring and operation.
    • Energy Efficiency: High-efficiency DC brushless motor design reduces energy consumption, helping to lower long-term operational costs.
    • Low Noise Level: Operating noise is below 55 decibels, making it suitable for applications requiring a quiet environment.
    • Durable Design: Constructed from galvanized steel or stainless steel 304, built to withstand frequent use in harsh environments, extending its service life.
    • Customizable Features: Offers options for surface coating, waterproofing, and wear-resistant materials to meet specific industry requirements.

    Application of DC Motor Drive 100W Motorized Roller With Low Speed And High Torque

    • Automated Conveyor Systems: Ideal for transporting goods in manufacturing and warehousing environments.
    • Material Handling: Efficiently moves heavy items like pallets, boxes, and bulk materials.
    • Shuttle Systems: Connects different conveyor branches for streamlined logistics.
    • Zero Pressure Accumulation (ZPA) Systems: Supports accumulation without product pressure, enhancing safety and efficiency.
    • Packaging Industry: Facilitates the transport of packaged products in production lines.
    • Food and Beverage Processing: Suitable for conveying food items, with options for food-grade materials.

    Technical Parameters of DC Motor Drive 100W Motorized Roller With Low Speed And High Torque


    DC Motor Drive 100W Motorized Roller With Low Speed And High Torque
    VoltageDC24V, DC48VMotor TypeDC brushless gear deceleration motor drum
    Power100wCylinder Diameter60mm
    Linear Velocity1.04-114m/minProtection ClassIP54
    Cylinder LengthCustomizableCylinder MaterialGalvanized steel, stainless304
    Ambient Temperature-5℃~+45℃

    Linkage Mode

    Multi-wedge belt , Taper sleeve, Synchronizing whee, O Sheave, Sprocket, Knurling,Straight roll, Drum type
    ApplicationsFor medium and heavy palletized transport, heavy loads and frequent starts and stops

    Technical-Parameters-of-Φ60-Motor-Drive-Roller

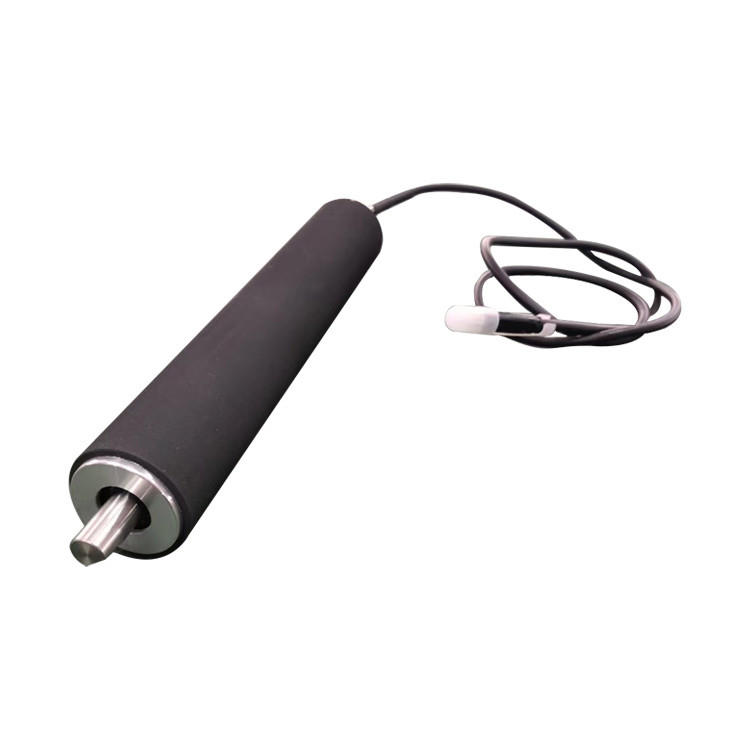

    Feature Picture of DC Motor Drive 100W Motorized Roller With Low Speed And High Torque

    UL CE Approved DC Motor Drive 100W Motorized Roller With Low Speed And High TorqueUL CE Approved DC Motor Drive 100W Motorized Roller With Low Speed And High TorqueUL CE Approved DC Motor Drive 100W Motorized Roller With Low Speed And High TorqueUL CE Approved DC Motor Drive 100W Motorized Roller With Low Speed And High Torque
